Leading Manufacturer & Supplier of EMI / EMC Chamber

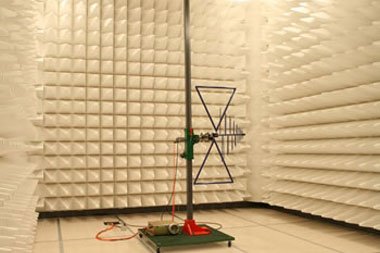

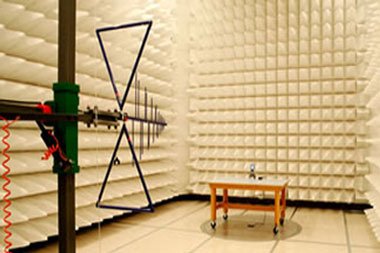

- Semi Anechoic chamber for EMC Test facility found application in military, automotive testing, commercial, electronic component testing.
- Manufactured in various size configurations as 3 Mtr, 5 Mtr & 10 Mtr.
- This chamber is used to perform Radiated Emissions & Radiated Immunity.
- Supplied with customized requirements from clients.
- Normalized Site Attenuation (NSA): +/- 4.0dB
- Site VSWR (SVSWR): ≤ 6dB
- Field Uniformity (FU): 75% of 16 points ≤ 6dB at 3m test distance. Shielding effectiveness:-
- Frequency range of interest : 26 MHz – 40.0 GHz
- Shielding effectiveness: 80 to 100 dB.
- Test procedure: as per STD-IEEE-299.
- CISPR 16-1-4
- IEC/EN 61000-4-3
- EN 50147-1
- ANSI C63.4
- FCC 15
